Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

Customized Full-Automatic Rock Wool Sandwich Panel Production Line Easy To Operate

ब्रांड नाम: Greenson
एमओक्यू: 1
कीमत: $790000
भुगतान की शर्तें: एल/सी,टी/टी
विस्तृत जानकारी
उत्पत्ति के प्लेस:
हेबै
प्रोडक्ट का नाम:
अच्छी गुणवत्ता के साथ अनुकूलित स्वचालित रॉक वूल सैंडविच पैनल उत्पादन लाइन
कीवर्ड:
ऊर्जा बचत रॉक वूल सैंडविच पैनल उत्पादन लाइन निर्माता
रंग:
ग्राहक की आवश्यकता
विशेषता:
पूर्ण स्वत:
पैकेजिंग विवरण:
प्लास्टिक फिल्म
प्रेषण का बंदरगाह:
टियांजिन
मुख्य घटक:
पीएलसी, इंजन, असर, मोटर, पंप
प्रमुख विक्रय बिंदु:
संचालित करने में आसान
आवेदन:
उपयोग:
वोल्टेज:
380V 50Hz 3चरण (आवश्यकतानुसार परिवर्तनीय)
उत्पाद का वर्णन
Customized Automatic Rock Wool Sandwich Panel Production Line With Good Quality
Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process
  • Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
  • Precision low-speed metering pump with computer-controlled frequency regulation
  • Accurate dosing and stepless speed adjustment capabilities
Product Capabilities

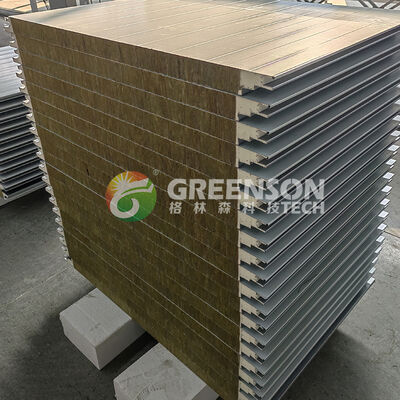

  • Produces various flat and corrugated sheet types
  • Sandwich panels: thickness 40-300 mm, width 950-1200 mm
  • High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
  • Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials
Technical Specifications
Material Type: Color steel sheet; Galvanized sheet; Aluminum sheet
Thickness: 0.3-0.8 mm
Width: ≤1250 Mpa
Suitable Panel Size Length: 2000-18000 mm
Width: 500-1200 mm
Thickness: 30-250 mm (excluding corrugation height)
Production Speed 3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor 12000-42000 mm
Work Pressure on Pouring Foam 150-200 Bar
Total Power 660 kW / 300 kW
Total Dimensions 130000 * 15000 * 6000 mm (Length * Width * Height)
