Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine

ब्रांड नाम: LVJOE
मॉडल संख्या: LV-CK01
एमओक्यू: 1 सेट
कीमत: US $20000-80000
भुगतान की शर्तें: एल/सी, टी/टी
आपूर्ति करने की क्षमता: प्रति वर्ष 50 सेट
विस्तृत जानकारी
उत्पत्ति के प्लेस:
चीन
प्रमाणन:
ISO CE
प्रोडक्ट का नाम:
प्लास्टर बोर्ड जिप्सम बोर्ड सीमेंट बोर्ड होल पंचिंग लाइन होल मेकिंग मशीन
कीवर्ड:
छोटे व्यवसाय का अवसर निलंबित छत टाइल छिद्रण मशीन छिद्रित जिप्सम ड्राईवाल बोर्ड सीलिंग मशीन
दबाव:
80T, 160T, 200T
प्रयोग:
जिप्सम बोर्ड, एमडीएफ, एचपीएल, फाइबर सीमेंट बोर्ड वेध
पैटर्न्स:
गोल, वर्ग, अंडाकार, हेक्सागोनल, अनियमित
छिद्र की चौड़ाई:
1220 मिमी
रफ़्तार:
50 बार/मिनट
संपूर्ण आकार:
2300*1500*2300 (एच*एल*डब्ल्यू)
पैकेजिंग विवरण:
पीई फिल्म लपेटा हुआ
आपूर्ति की क्षमता:
प्रति वर्ष 50 सेट
प्रमुखता देना:

gypsum board perforation machine

,

cement board hole punching line

,

plaster board holes making machine

उत्पाद का वर्णन
Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine
Product Specifications
Attribute Value
Product Name Plaster Board Gypsum Board Cement Board Holes Punching Line Holes Making Machine
Pressure Options 80T, 160T, 200T
Material Compatibility Gypsum Board, MDF, HPL, Fiber cement board perforation
Available Patterns Round, Square, Oval, Hexagonal, Irregular
Width of Perforation 1220mm
Operation Speed 50 times/minute
Overall Dimensions 2300*1500*2300 (H*L*W)
Technical Specifications
  • Punching pressure: 200 ton
  • Stroke: 30 mm
  • Max mold height closed: 260mm
  • Number of strokes: 50 times/minute
  • Slide surface: 210*1100mm
  • Working table: 300*1670mm
  • Spacing of both pole: 1350mm (loads max board width 1220mm)
  • Power of main motor: 22kw
  • Power of servo motor: 2.6kw (brand: Zhejiang yifeng)
  • Feeding accuracy: ±1mm
  • Maximum feeding rate: 100mm
  • Maximum feeding thickness: 20mm
  • Gross weight: 11000kg
  • Overall dimension: 2300*1500*2300 (H*L*W)

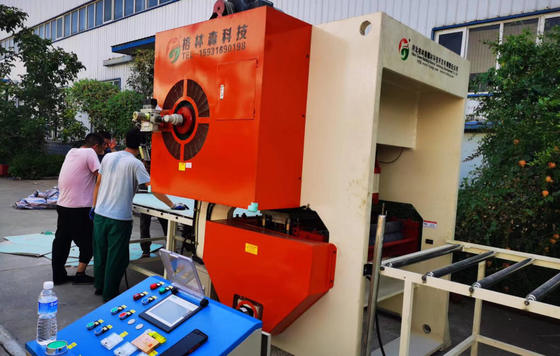

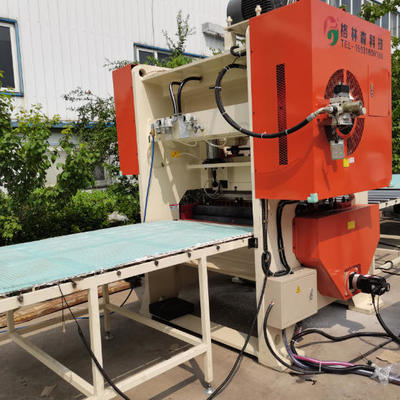

Structure and Configuration: Body of the main machine is welded with Q235 steel plate. H type gantry structure.
Feeding System Configuration
  • Servo motor controlled feeding device

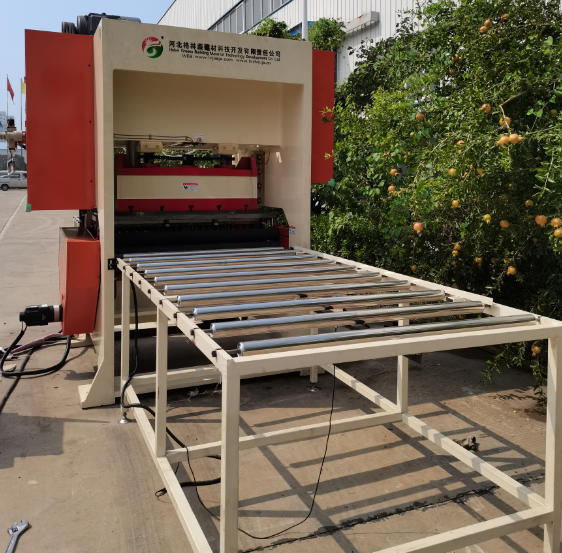

  • Front and rear roller conveyor (3000mm each)
  • Unilateral positioning for easy operation and high frequency
Electric Control System
  • Central cabinet control
  • LCD touch screen digital input
  • Controls feeding, punching, and operation
  • 5.7-inch color LCD touch screen
Applications

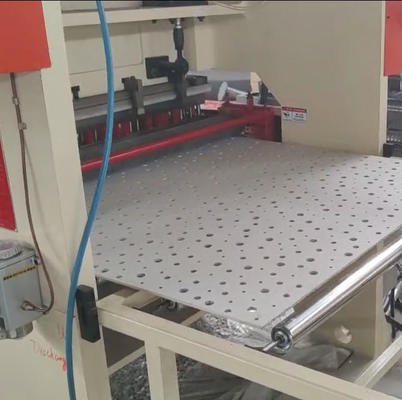

This perforation machine is used to create holes in gypsum ceiling board, MgO board, MDF, HDF, Fiber cement board, and metal sheets.
Available Perforation Patterns
Custom perforating mold designs available. Our company maintains a punching pattern database to provide technical support for customers, including:
  • Round hole
  • Square hole
  • Oval hole
  • Round/oval cross
  • Hexagonal hole
  • Irregular hole
